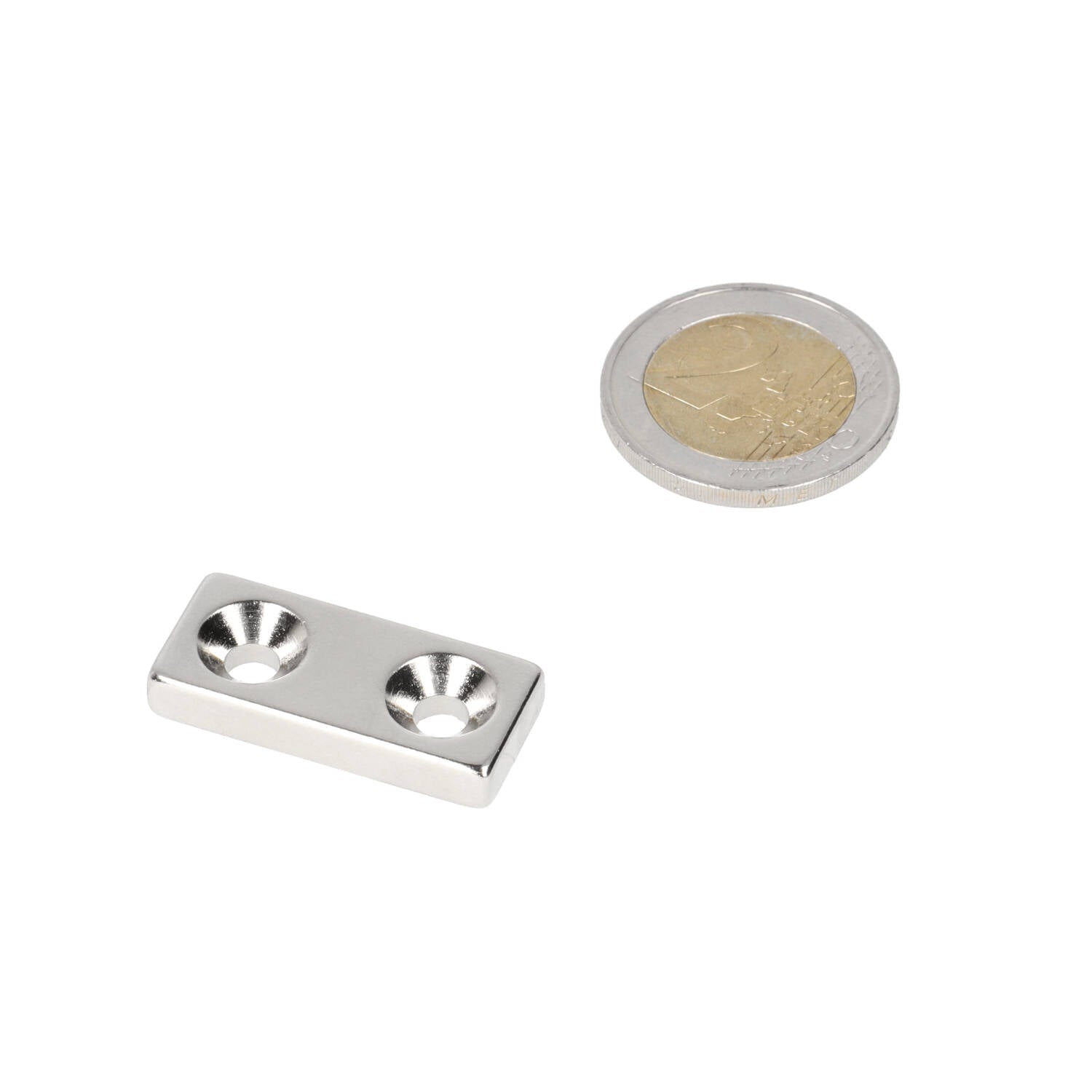

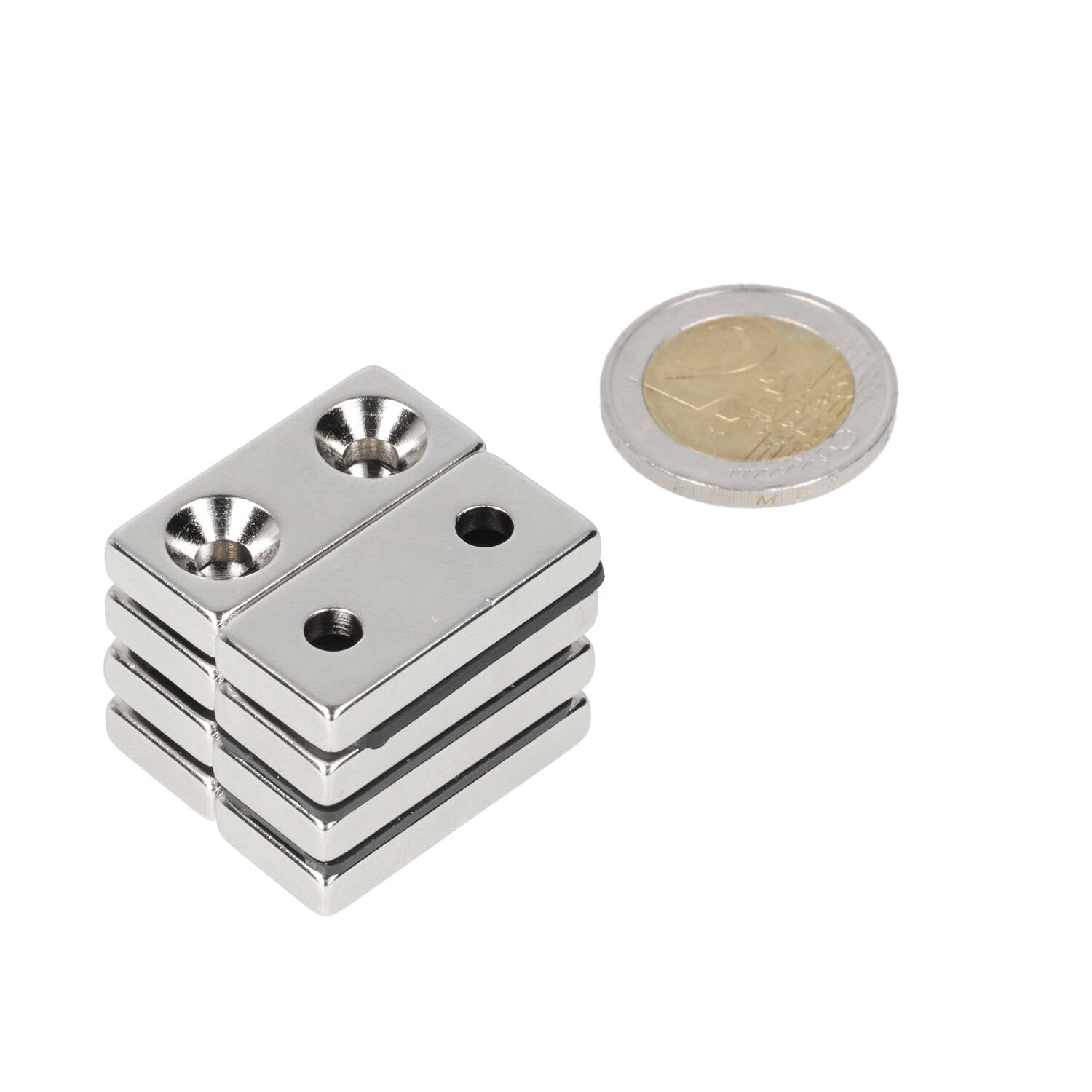

Neodymium Block Magnet with 2x countersunk holes 30 x 13.5 x 5 mm N48 NiCuNi North Pole

Neodymium block magnet 30 x 13.5 x 5 mm, grade N48 with NiCuNi coating. Holding force approx. 5.2 kg.

Specifications

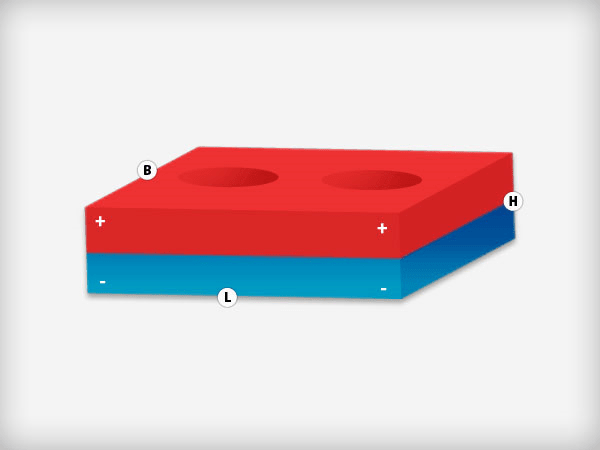

• Dimensions: 30 x 13.5 x 5 mm (length x width x height)
• Grade: N48 (neodymium)
• Coating: NiCuNi (nickel-copper-nickel)
• Magnetization: axial
• Mounting: 2 countersunk holes
• Pole on countersunk side: north pole
• Holding force: approx. 5.2 kg
• Maximum temperature: 80 °C

What do you use this magnet for?

Suitable for cabinet doors and flaps, latches in furniture, campers and caravans, and displays, exhibition stands and interior design. The rectangular shape provides a flat contact surface, convenient for mounting in slots and against flat surfaces. The two countersunk holes allow mounting with countersunk screws. In this version, the north pole is on the countersunk side. If you want two magnets to attract each other, combine a north pole version with a south pole version; two identical versions repel each other. In jewelry, only conceal it and do not let it touch the skin: the NiCuNi layer contains nickel. For heavier doors or panels: distribute multiple magnets over the surface or choose a larger size. Also suitable for steel doors: read Epoxy coated magnets in steel doors. Which block magnet do you choose?

The holding force is measured under ideal conditions on a flat steel plate; in practice, the actual holding force is lower. Read how holding force is determined.

Frequently asked questions

Which screws fit in it?

Two 4 mm screws with a flat countersunk head. Do not tighten them too much: neodymium is brittle and can crack.

North pole or south pole: which do I need?

In this version, the north pole is on the countersunk side. If you want two magnets to click together, also take the south pole version. If the magnet is used against steel, the pole does not matter.

Is it strong enough for a cabinet door?

For a regular cabinet door or flap, it is more than sufficient. For large or heavy doors, distribute two over the height.

Can I use it in a damp room or outdoors?

The NiCuNi coating is intended for dry indoor use. For damp places, choose an epoxy coated magnet or seal the magnet.

I need a lot of them for a series of cabinets. How do I order that most conveniently?

Order the north and south pole versions in equal quantities, so that each door has a matching pair. From larger quantities, volume discounts apply; as a company, you order on account or request a quote for a project. Business ordering.

Delivery and returns

Ordered and paid for on working days before 16:00, it is shipped the same working day if in stock. Free shipping within the Netherlands from €45. Consumers have a 30-day cooling-off period.

Safe use

Magnets are not toys and should be kept out of reach of children. Keep strong magnets away from pacemakers, electronics and bank cards.
